Product Description
External By Pass

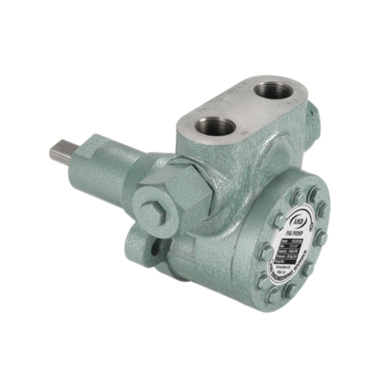

Internal By Pass

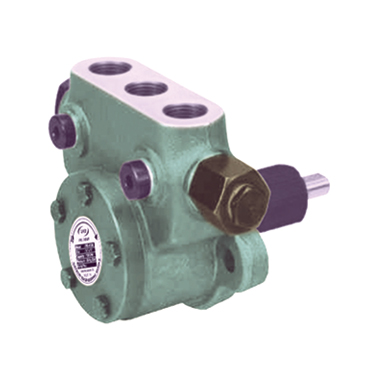

Top By Pass
AMD pumps offer “FIG PumpS” brand internal gear pump Model “FIG Pump” which is high precision and fuel pressuring type positive displacement internal gear pump which prepared by graded cast iron. These nitrated gear , shafted rotor give better performance with closed tolerance to give long life. Model “FIG” is flange mounted. These pumps are self priming type produces maximum, vacuum determined by the cavity between the gear teeth. These pumps modified profile teeth cutting to give accurate capacity with in the pressure range. These pumps are capable to run liquid up to 500 CST viscosity and up to temperature 200ºc. The sealing is done with mechanical seal to ensure zero leakage.
The suction and delivery connections are available in 3/8″,1/2″,3/4″and 1″ size. Model “FIG” pump come in a capacity Range of 150 LPH to 6000 LPH with operating pressure up to 35 kg/cm², yet for continuous duty maximum recommended pressure is 30kg/cm². These pumps can also be used at 2800 RPM. The capacity will have approx double of normal duty condition. These pump can be run both clock and anti clock direction as per requirement.
FIG Pump
Features
Higher suction lift.
Self priming pump and Capacity to create vacuum up to 600/650 mm hg
Flange and Foot mounting option.
Optionally available in investment casting.
Zero leakage mechanical seal.
Maximum temperature up to 200º c.
Continues duty pump.
Internal lubrication systems.
Available with or without built-in pressure relief valve and external by pass.
Pressure regulator, progressively adjustable.
Application
Highly used in fuel injection Burners, Boilers, Furnaces.
Booster application in diesel locomotive.
Force feed lubrication.
Eventually with separate pressure regulating valves.
For gas oil, medium, heavy and very heavy oil.
Filter pumping.
Pumps for PHF units.
Pump for hydraulic oil.
Pump suitable for LDO, FO, HSD and LSHS.
Material of Construction
| Part | Material For FIG |
| Body | IIS.210 FG 220 C.I. Grade |
| Eccentric | IIS.210 FG 220 C.I. Grade |
| Idler Gear | SAE-8620 |
| Rotor shaft | SAE-8620 |
| Sealing | Mechanical seal |
| Piston | EN-8 |
| Adjusting Screw | EN-8 |
| Spring | Mild Steel |
Technical Specification
| Model | Capacity in LPH at 1440 RPM | Suction & Delivery Size | Motor HP | |
| 3 kg/cm² | 30 kg/cm² | |||
| FIG-S60 | 60 | 3/8″ x 3/8″ | 0.25 | 1.00 |
| FIG-S90 | 90 | 3/8″ x 3/8″ | 0.25 | 1.00 |
| FIG-S120 | 120 | 3/8″ x 3/8″ | 0.25 | 1.00 |
| FIG-A150 | 150 | 1/2″ x 1/2″ | 0.25 | 1.50 |
| FIG-A300 | 300 | 1/2″ x 1/2″ | 0.25 | 1.50 |
| FIG-A450 | 450 | 1/2″ x 1/2″ | 0.25 | 2.00 |
| FIG-A600 | 600 | 1/2″ x 1/2″ | 0.25 | 2.00 |
| FIG-B1000 | 1000 | 3/4″ x 3/4″ | 0.75 | 3.00 |
| FIG-B1500 | 1500 | 3/4″ x 3/4″ | 0.75 | 3.00 |
| FIG-B2000 | 2000 | 3/4″ x 3/4″ | 0.75 | 5.00 |
| FIG-B2500 | 2500 | 3/4″ x 3/4″ | 0.75 | 5.00 |
| FIG-C3000 | 3000 | 1″ x 1″ | 1.50 | 7.50 |
| FIG-C4500 | 4500 | 1″ x 1″ | 1.50 | 10.0 |
| FIG-C6000 | 6000 | 1″ x 1″ | 1.50 | 15.0 |
