Pioneer & Leading Manufacturer of FIG Pump
At AMD FIG Pump, we are a prominent manufacturer and supplier of FIG Pumps.
Established in 2001 in Ahmedabad (Gujarat, India), we have built a reputation for excellence driven by our robust, state-of-the-art infrastructure. Our facility is seamlessly integrated with specialized sub-units—including Procurement, R&D, Quality Assurance, Advanced Manufacturing, and Global Logistics—enabling us to deliver precision-engineered pumps tailored to diverse technical specifications. Equipped with cutting-edge machinery and tools, our manufacturing processes strictly align with global quality standards.
Beyond technical expertise, our growth across domestic and international markets is anchored in our ethical business policies, transparent pricing, flexible payment structures, and an efficient logistic network that ensures swift, dependable delivery.
Our Wide Range Quality Products
Fuel Injection Internal Gear Pump (FIG)

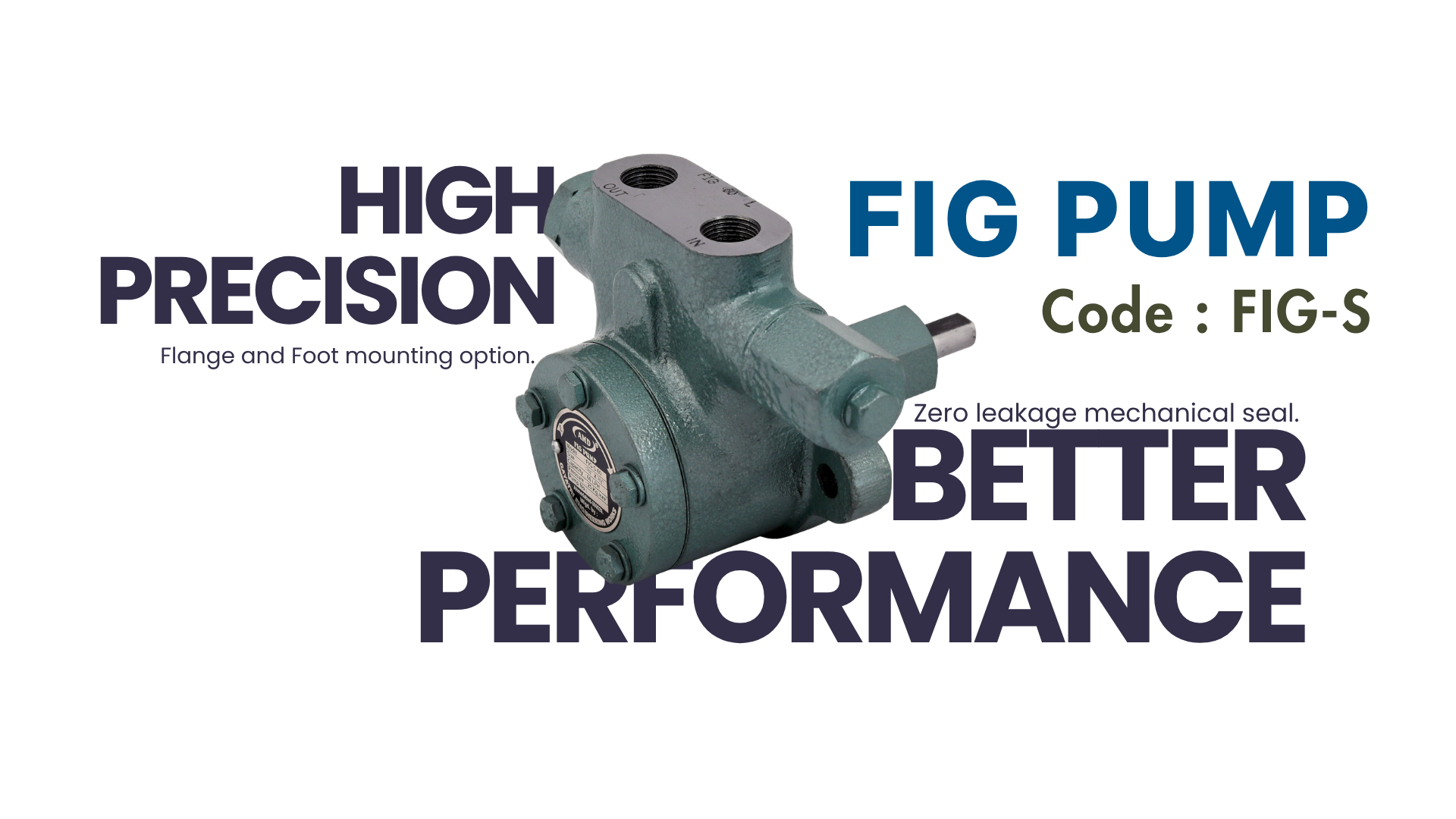

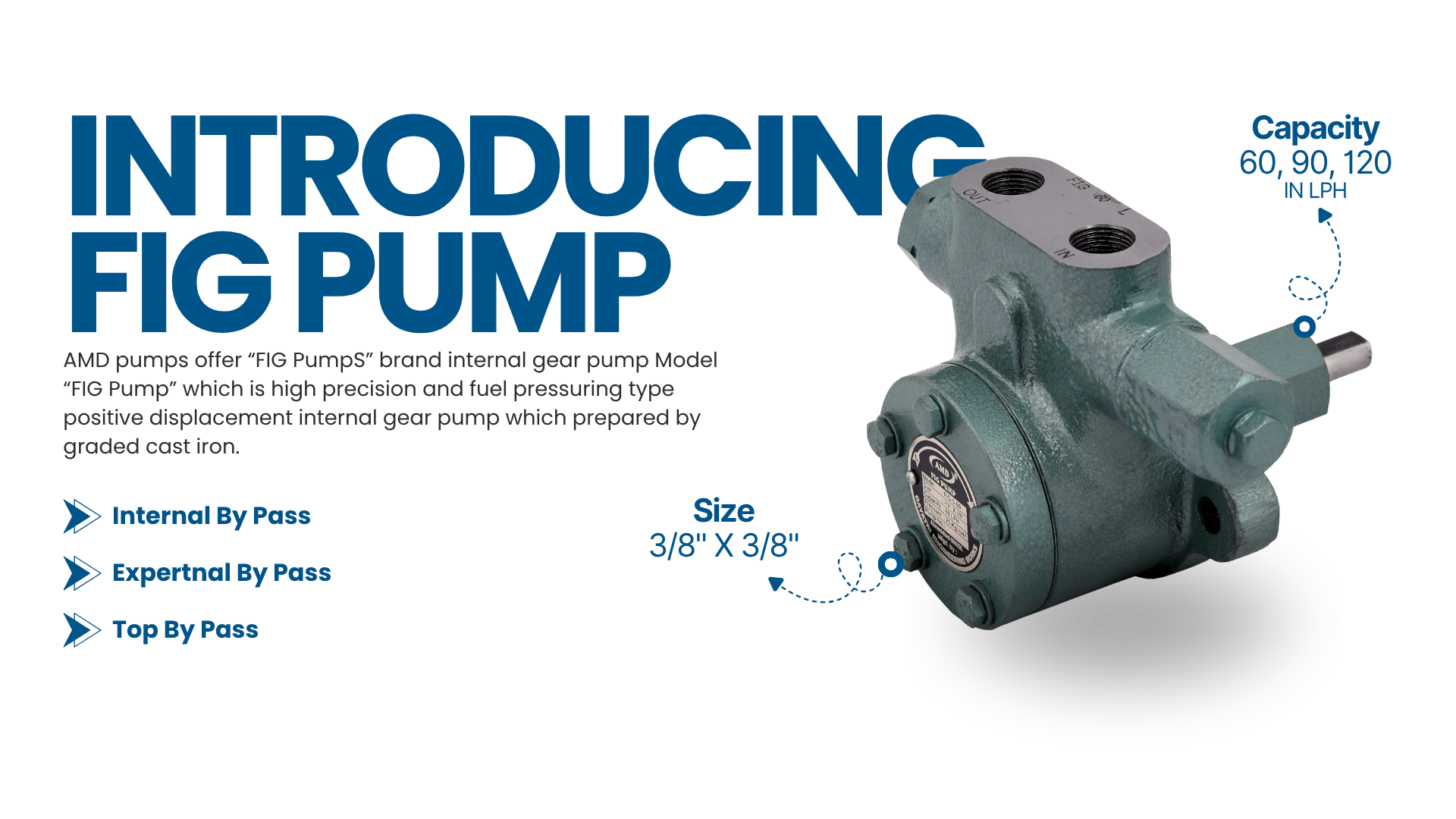

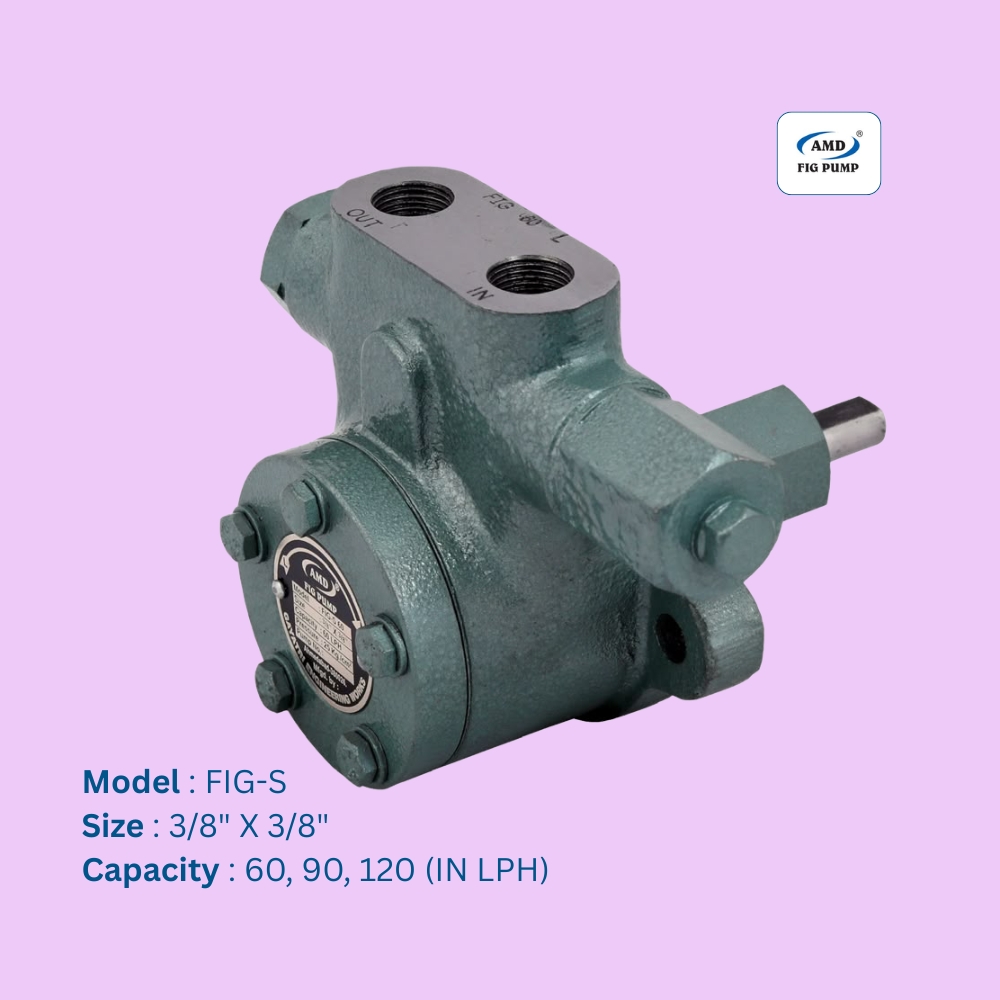

FIG PUMP (Series S)

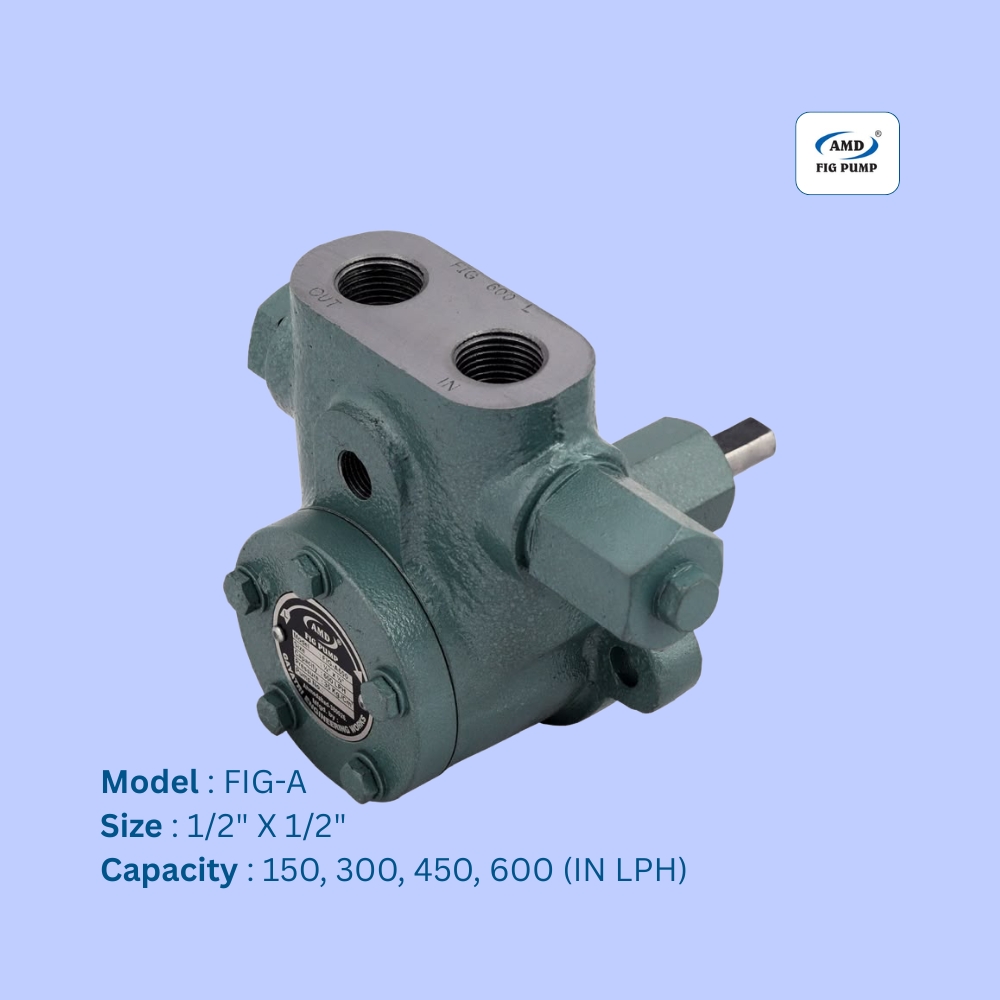

FIG PUMP (Series A)

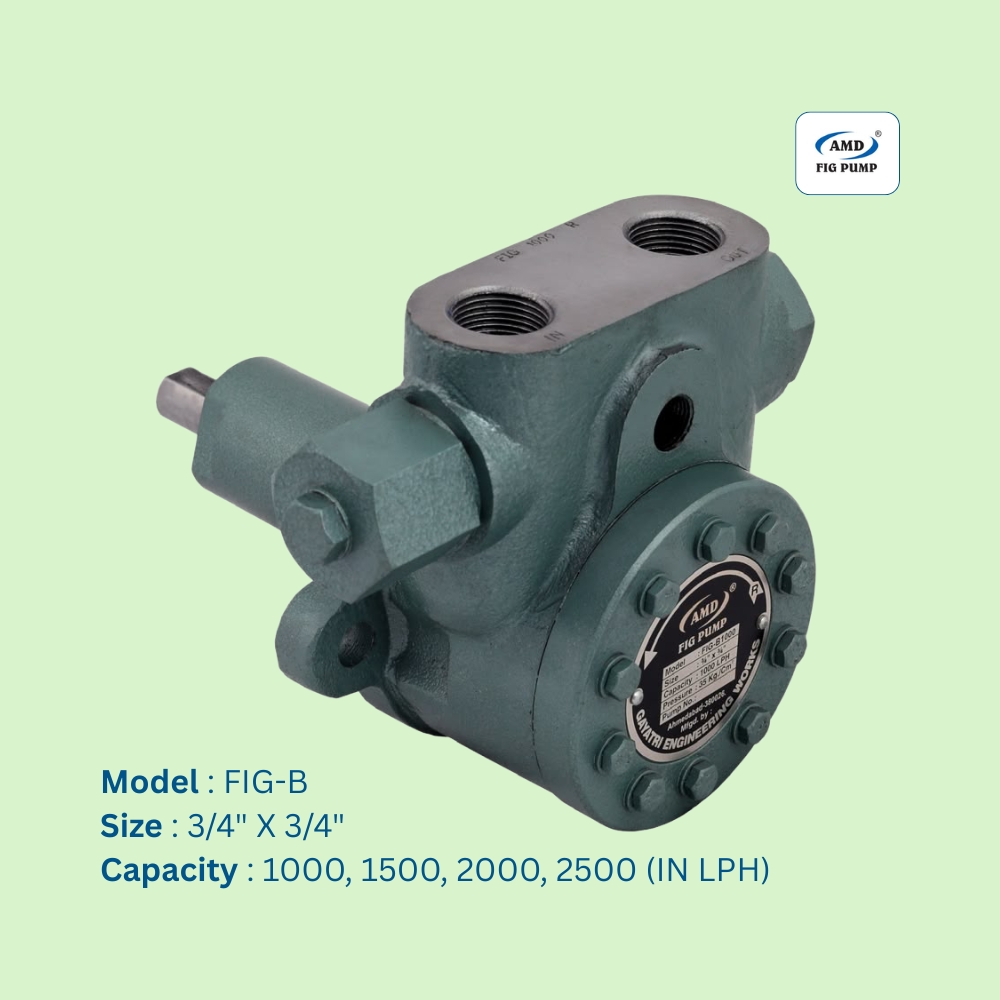

FIG PUMP (Series B)

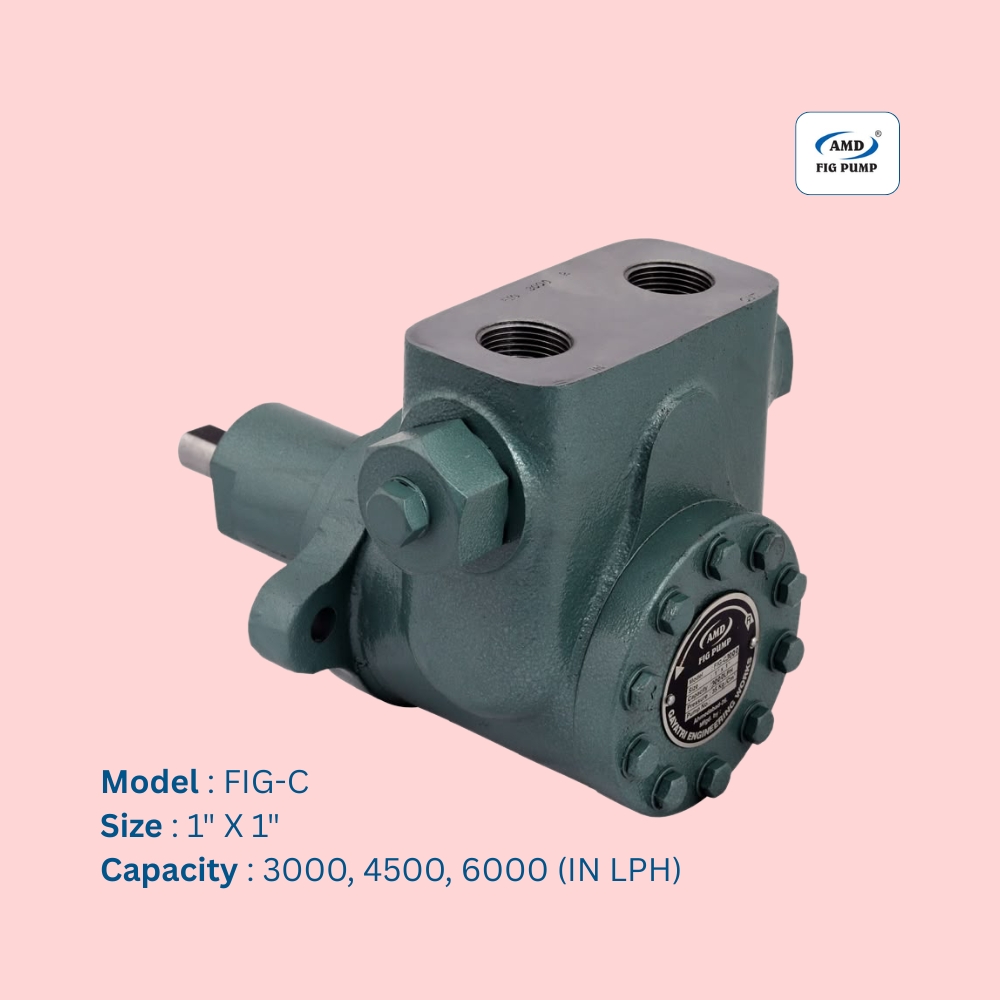

FIG PUMP (Series C)
Precision-Engineered Fuel Firing & Transfer Solutions
At AMD FIG Pump, our Fuel Injection Gear Pumps are designed to deliver a precise, consistent, and pulsation-free fuel flow for high-demand industrial applications. As a trusted manufacturer and exporter, we engineer high-pressure positive displacement internal gear pumps using premium-graded cast iron and precision-machined components. This meticulous construction ensures smooth operation, exceptional pressure stability, and an extended service life under continuous-duty performance.
| Part | Material Of Construction |
| Body | IS 210 FG 260 CI Grade |
| Eccentric Cover | IS 210 FG 260 CI Grade |
| Idler Gear | SAE-8620 |
| Rotor Shaft | SAE-8620 |
| Sealing | Mechanical seal |
| Piston | EN-8 |
| Adjusting Screw | EN-8 |
| Spring | Spring Steel |
Feature of FIG Pump
- Higher suction lift.
- Self priming pump and Capacity to create vacuum up to 600/650 mm hg
- Flange and Foot mounting option.
- Optionally available in investment casting.
- Zero leakage mechanical seal.
- Maximum temperature up to 200º c.
- Continues duty pump.
- Internal lubrication systems.
- Available with or without built-in pressure relief valve and external by pass.
- Pressure regulator, progressively adjustable.
Application of FIG Pump
- Highly used in fuel injection Burners, Boilers, Furnaces.
- Booster application in diesel locomotive.
- Force feed lubrication.
- Eventually with separate pressure regulating valves.
- For gas oil, medium, heavy and very heavy oil.
- Filter pumping.
- Pumps for PHF units.
- Pump for hydraulic oil.
- Pump suitable for LDO, FO, HSD and LSHS.
Absolute accuracy, durability, and dependable fuel-injection solutions
Our AMD Brand FIG Pumps efficiently handle a wide range of light fuels and oils—including Light Diesel Oil (LDO), High-Speed Diesel (HSD), furnace oil, and light fuels—making them the definitive choice for industries demanding absolute accuracy, durability, and dependable fuel-injection solutions.
| Model | Capacity in LPH at 1440 RPM | Suction & Delivery Size | Motor HP | |
| 3 kg/cm² | 30 kg/cm² | |||
| FIG – S60 | 60 | 3/8″ x 3/8″ | 0.25 | 1.0 |
| FIG – S90 | 90 | 3/8″ x 3/8″ | 0.25 | 1.0 |
| FIG – S120 | 120 | 3/8″ x 3/8″ | 0.25 | 1.0 |
| FIG – A150 | 150 | 1/2″ x 1/2″ | 0.25 | 1.5 |
| FIG – A300 | 300 | 1/2″ x 1/2″ | 0.25 | 1.5 |
| FIG – A450 | 450 | 1/2″ x 1/2″ | 0.25 | 2.0 |
| FIG – A600 | 600 | 1/2″ x 1/2″ | 0.25 | 2.0 |
| FIG – B1000 | 1000 | 3/4″ x 3/4″ | 0.75 | 3.0 |
| FIG – B1500 | 1500 | 3/4″ x 3/4″ | 0.75 | 3.0 |
| FIG – B2000 | 2000 | 3/4″ x 3/4″ | 0.75 | 5.0 |
| FIG – B2500 | 2500 | 3/4″ x 3/4″ | 0.75 | 5.0 |
| FIG – C3000 | 3000 | 1″ x 1″ | 1.5 | 7.5 |
| FIG – C4500 | 4500 | 1″ x 1″ | 1.5 | 10.0 |
| FIG – C6000 | 6000 | 1″ x 1″ | 1.5 | 15.0 |
